Why Silica Sand Used in Ceramics
What gives ceramic products their remarkable strength and durability? One of Earth’s abundant minerals – silica sand – plays a pivotal role in crafting everything from your daily coffee mug to elegant porcelain dinnerware. I will introduce you to silica sand’s fascinating world while explaining its crucial function as part of ceramic production in this article.

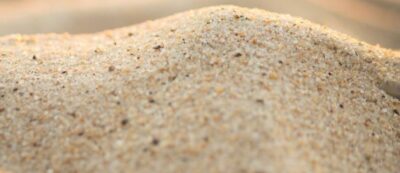

What is Silica Sand?
Silica sand, composed largely of silicon dioxide (SiO₂), is one of the most prevalent minerals present in Earth’s crust and beach sand is often composed of it. But for use in ceramic production it must meet specific quality standards before being chosen and processed to use as raw material.
Chemical Composition of Silica Sand
Silica sand consists of highly pure silicon dioxide (usually over 95% SiO₂). This chemical composition gives silica its special ceramic applications properties; any remaining percentage often comprises trace minerals like alumina, iron oxide and calcium oxide that could alter color or properties in final ceramic product.
Natural Sources of Silica Sand
Silica sand suitable for ceramic production typically originates in geological deposits where natural processes have produced exceptionally pure deposits of silica sand, such as river beds, coastal areas or ancient seabeds where natural processes have removed impurities through centuries of washing and sorting processes.
The Historical Connection Between Silica and Ceramics
The relationship between silica and ceramics isn’t a modern innovation – it dates back thousands of years to the earliest pottery creations.
Ancient Ceramic Production Techniques
Ancient potters might not understand the science behind their craft, but through trial and error they discovered which clay mixtures produced better results than others. Successful mixtures inevitably contained significant amounts of naturally occurring silica; archaeological finds show humans were creating ceramic figurines using such clay as early as 26,000 BCE!
Evolution of Silica Use in Pottery
As ceramic techniques evolved, so did our understanding of materials. By the Tang Dynasty (618-907 CE), Chinese potters began deliberately adding crushed quartz (a form of silica) to clay bodies to achieve translucent quality that led directly to porcelain’s development – this marked an inflection point where silica wasn’t just present naturally in clay but could now be added specifically for specific properties enhancement.
Key Properties of Silica Sand for Ceramic Applications
What makes silica sand so valuable to ceramic artists and manufacturers? The answer lies in its remarkable physical and chemical properties.
Heat Resistance and Thermal Stability
Silica stands out as an exceptional heat resister. Boasting an approximate melting point of 1,710°C (3,110°F), silica’s thermal stability enables ceramics to maintain structural integrity throughout their firing processes without dissolving.
As someone with experience working with ceramic materials, heat resistance is absolutely critical. Without silica’s high melting point, many ceramic objects we take for granted would likely collapse completely when put through their first firing in a kiln.
Structural Integrity in Ceramic Bodies
Silica doesn’t just survive the firing process – it actively contributes to the quality of the final product in several ways.
Silica’s Role in Preventing Deformation
As ceramic pieces undergo the firing process, their clay particles soften into liquid. Silica particles remain firm at much higher temperatures, acting like support beams within their ceramic bodies to help preserve its desired form and retain the intended shape of each ceramic body. Consider silica grains like building supports: providing structural support while other elements undergo transformation.
Impact on Ceramic Shrinkage
Each clay body shrinks during drying and firing due to water evaporating from their pores and chemical changes occurring, but excessive shrinkage may lead to cracking or warping if left uncontrolled. Silica particles help counter this shrinkage by providing dimensional stability; including just enough silica into their clay body will allow ceramicists to control shrinkage rates more accurately for more predictable outcomes.
Types of Silica Used in Modern Ceramics
Silica does not serve the same function when used for ceramic applications; different forms serve different functions during ceramic creation processes.
Crystalline vs. Amorphous Silica in Ceramic Production
Silica comes in both crystalline (like quartz ) and amorphous forms (such as diatomaceous earth). Crystalline silica provides structural integrity to ceramic body strength while reactive diatomaceous earth can promote better glass formation during firing processes and enhance glaze formulations. Most ceramic formulations combine both forms for maximum effectiveness.
Particle Size Considerations
Size matters when it comes to ceramic applications: finer particles (known as silica flour ) melt more readily for glaze formation; while coarser sand provides structural support. Modern ceramic manufacturers carefully choose particle distributions according to desired properties of finished products.
Silica in Different Ceramic Formulations
Different types of ceramics require different amounts and forms of silica to achieve their characteristic properties.
Silica Content in Porcelain
Porcelain, prized for its translucence and delicate aesthetic, typically contains 20-30% silica, contributing to vitrification during firing for its characteristic translucent quality and shape retention during extremely high temperatures (around 1,300°C or 2,372°F).. Silica also helps porcelain maintain its shape during firing at these extreme temperatures – something it shares in common with fine china!
Silica’s Role in Stoneware
Stoneware ceramics, known for their strength and resilience, contain 15-20% silica to achieve vitrification without watertightness without translucent effects – something the silica content contributes greatly towards. Stoneware’s distinctive stonelike appearance helps it last.
Earthenware and Silica Requirements
Earthenware ceramics fired at lower temperatures typically contain 10-15% silica content, similar to porcelain or stoneware ceramics but less. Though smaller in terms of silica content than porcelain and stoneware ceramics, its importance remains essential in controlling shrinkage while providing some degree of strength. Due to earthenware’s porous structure and lower silica content it requires additional glazing techniques such as sealants for water resistance.
Manufacturing Processes Enhanced by Silica Sand
Beyond being a component of the clay body itself, silica plays critical roles in other aspects of ceramic production.
Silica’s Contribution to Glaze Formulation
Silica is the primary glass-forming element in ceramic glazes, melting down during firing to become liquid glass and providing that smooth glassy surface that we expect in ceramic pieces. Without silica’s presence in most ceramic glazes, producing their glossy surface would have been impossible.
Silica plays an essential role in glaze formulations, influencing properties such as melting temperature, viscosity, surface tension and thermal expansion. A skilled ceramicist can manipulate its content for maximum gloss or matte finishes depending on desired effects.
The Role of Silica in Firing Processes
At high temperatures, silica undergoes multiple transformations as temperatures increase, including transformation from alpha to beta quartz silica at approximately 573°C (1,063°F). Understanding these transformations is crucial in controlling firing schedules and avoiding thermal shock that could crack or destroy ceramic pieces.
Kiln controllers typically set slow temperature increases and decreases during these critical points to allow silica time to adjust more gradually while relieving stress from ceramic pieces.
Environmental and Health Considerations
While silica is invaluable to ceramics, working with it does require certain precautions.
Safety Measures When Working with Silica
Respirable crystalline silica dust poses serious health hazards, most notably silicosis – an incurable lung condition. Ceramic studios should utilize dust collection systems, wet cleaning methods and provide respirators as part of their protective measures; hobbyists should similarly take measures when handling dry materials containing silica dust.
Sustainable Sourcing of Silica for Ceramics
As sustainability becomes an increasing focus in all industries, ceramic manufacturers have begun seeking more environmentally responsible methods of procuring silica for use in ceramic manufacturing processes, including using recycled glass (which contains silica) as part of a partial replacement for virgin silica sand extraction operations; this reduces environmental impacts from extraction.
Innovative companies are currently exploring methods for recovering silica from waste streams such as rice hull ash, which contains significant levels of biogenic silica that could potentially be recovered and reused for ceramic applications.
Future Trends in Silica Use for Ceramic Production
The relationship between silica and ceramics continues to evolve with technological advances and changing market demands.
Technological Advancements
Advanced processing techniques enable more finely controlled silica particle sizes and purity levels, expanding the properties achievable in ceramic products. Nanotechnology has made significant advancements, with nano-silica particles offering opportunities to augment ceramic properties at lower addition rates than traditional silica sand.
3D ceramic printing is yet another area where specially processed silica is finding new applications. Precise control over silica content and particle size in printable ceramic slurries has enabled complex geometries previously impossible to produce to become reality.
Alternatives to Traditional Silica Sand
Environmental and health considerations have increased research on silica alternatives for certain ceramic applications, including rice hull ash, some types of volcanic ash and engineered silicates as potential partial replacements of traditional silica sand in certain applications.
However, silica’s unique combination of properties makes it hard to completely replace. Current innovations focus on decreasing hazardous forms while still using silica in ceramic products to achieve this endpoint.’
Conclusion
Silica sand plays a quiet but critical part in ceramic production, helping give ceramics their shape and strength when fired in a kiln, as well as providing smooth glassy finishes called glazes. Silica can be found abundantly throughout nature and offers special properties which make it the ideal ingredient for ceramic production, thus remaining an integral component for many years to come.
As ceramic technology progresses, our understanding and application of silica will become ever more sophisticated. No matter if you are an artist, an engineer, or simply appreciate the beauty of ceramics – understanding its role deepens appreciation of both science and art behind everyday objects like tiles and porcelainware.
